Assemble the GoDaddy Smart Terminal Pro

Step 2 of the GoDaddy Smart Terminal Pro get started series.

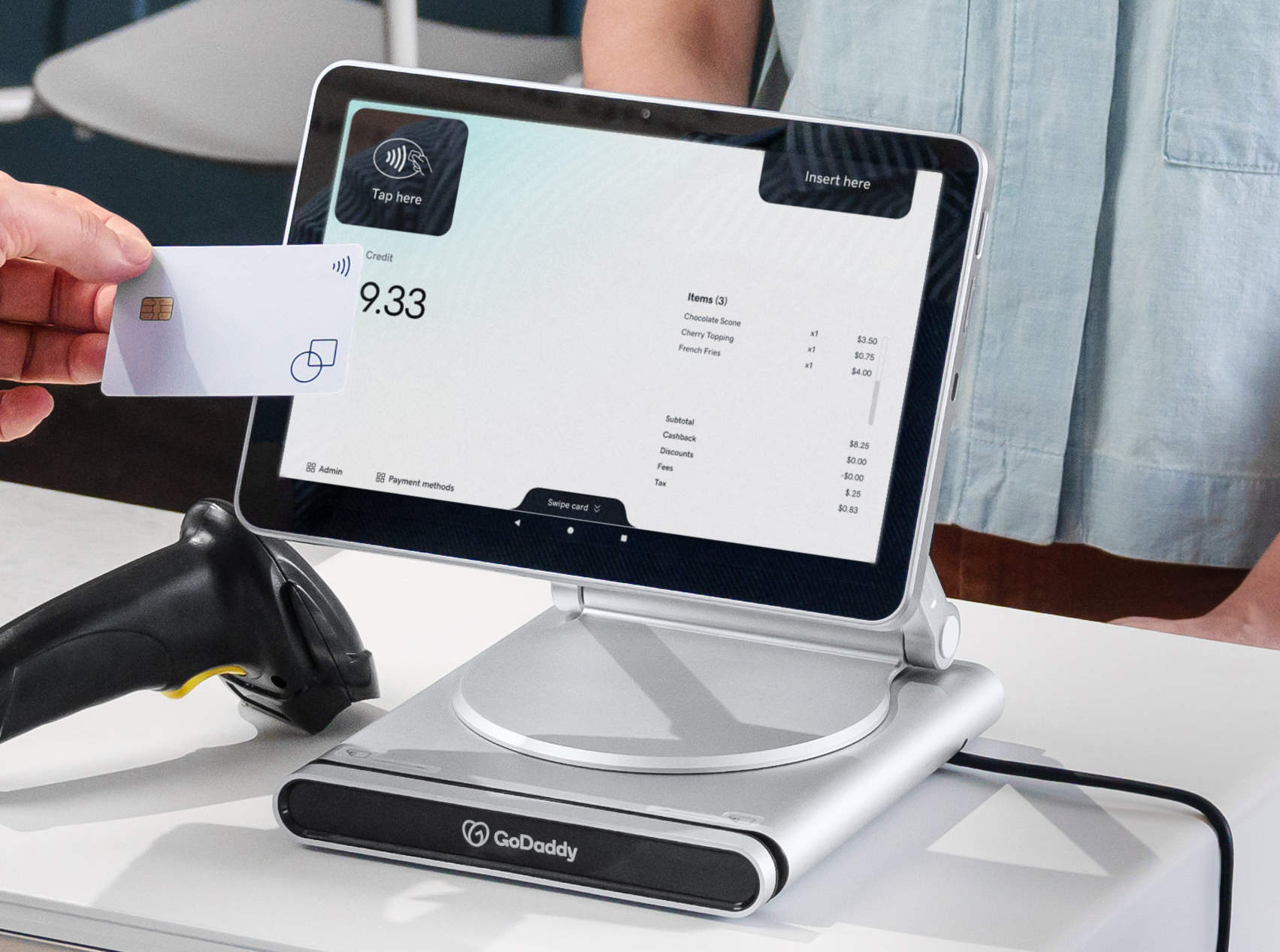

Connect the Smart Terminal Pro display, stand and accessory hub together, and position it in your workspace.

• The display sits on the swivel stand.
• The accessory hub is where you’ll connect the power cord and any external accessories.

Step 1: Connect the accessory hub

1. Turn the stand over and locate the plug-in compartment on the bottom.
2. Plug the accessory hub into the USB port on the bottom of the stand.

3. Tuck the cord into the groove on the bottom of the stand, so the cord is flush with the stand.
4. Turn the stand right-side up. The accessory hub should now extend from the side of the stand.

Step 2: Prepare the stand

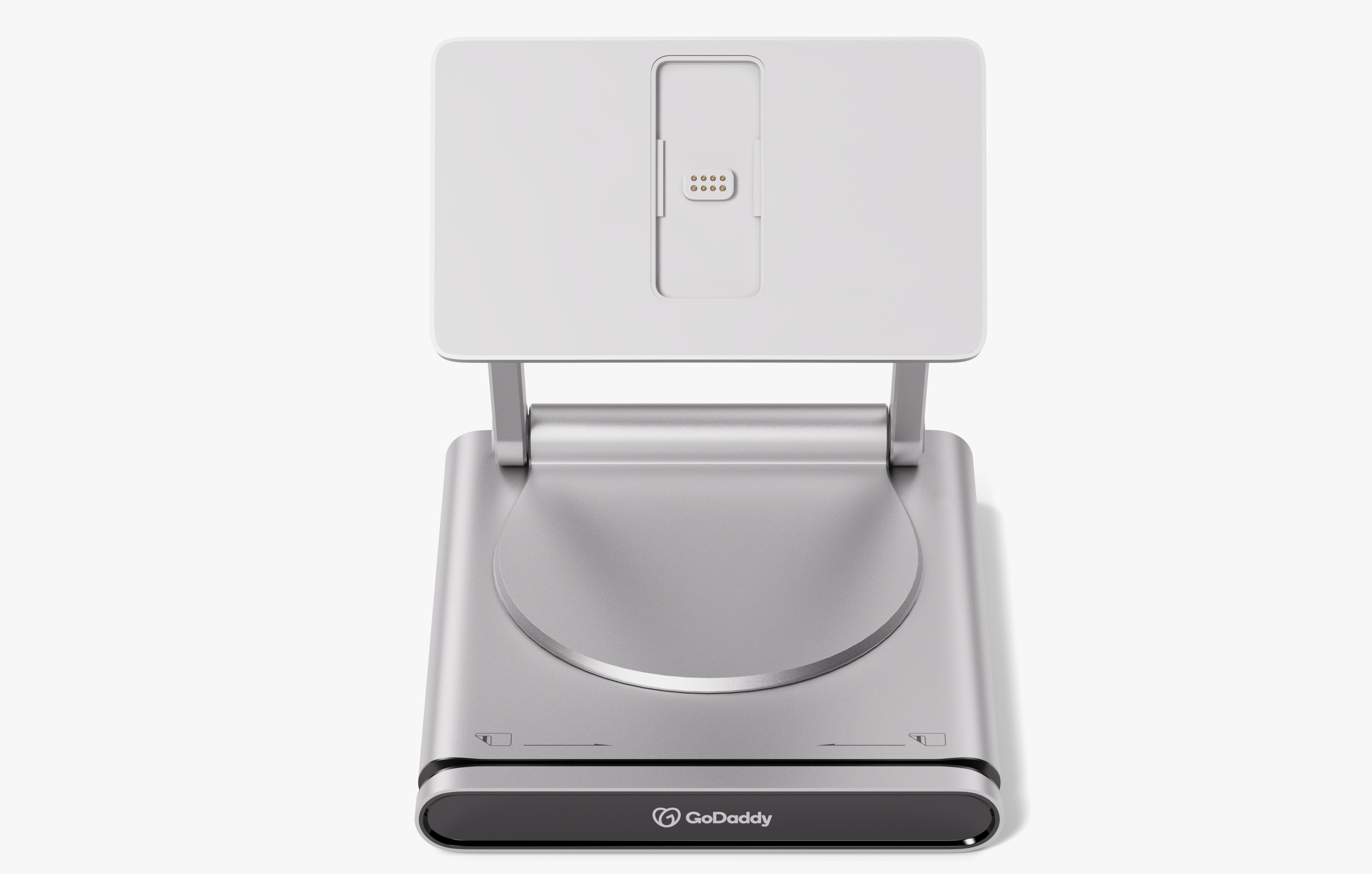

1. Raise the arms on the stand to their full height.
2. Tilt the tray on the stand so that it faces towards the card swipe slot on the stand. Make sure the top arrow on the tray is pointing up.


Step 3: Attach the display to the stand

1. Remove the protective film from the display and the tray.
2. Locate the chip card slot on the display. This side will be on top when it’s connected to the stand.

3. Align the connector port on the back of the display with the connector port on the stand and attach the display to the stand. The chip card slot on the display should be facing up, with the power button on the right. You'll hear the connectors lock into place.


   Note: The display is easy to attach and detach, but it’s a good idea to practice a few times to get a feel for it. To remove the display from the stand, locate the release button on the back of the tray. Slide down and hold the button, and gently pull the display away by the bottom edge. Your display remains fully functional while it’s detached from the stand.

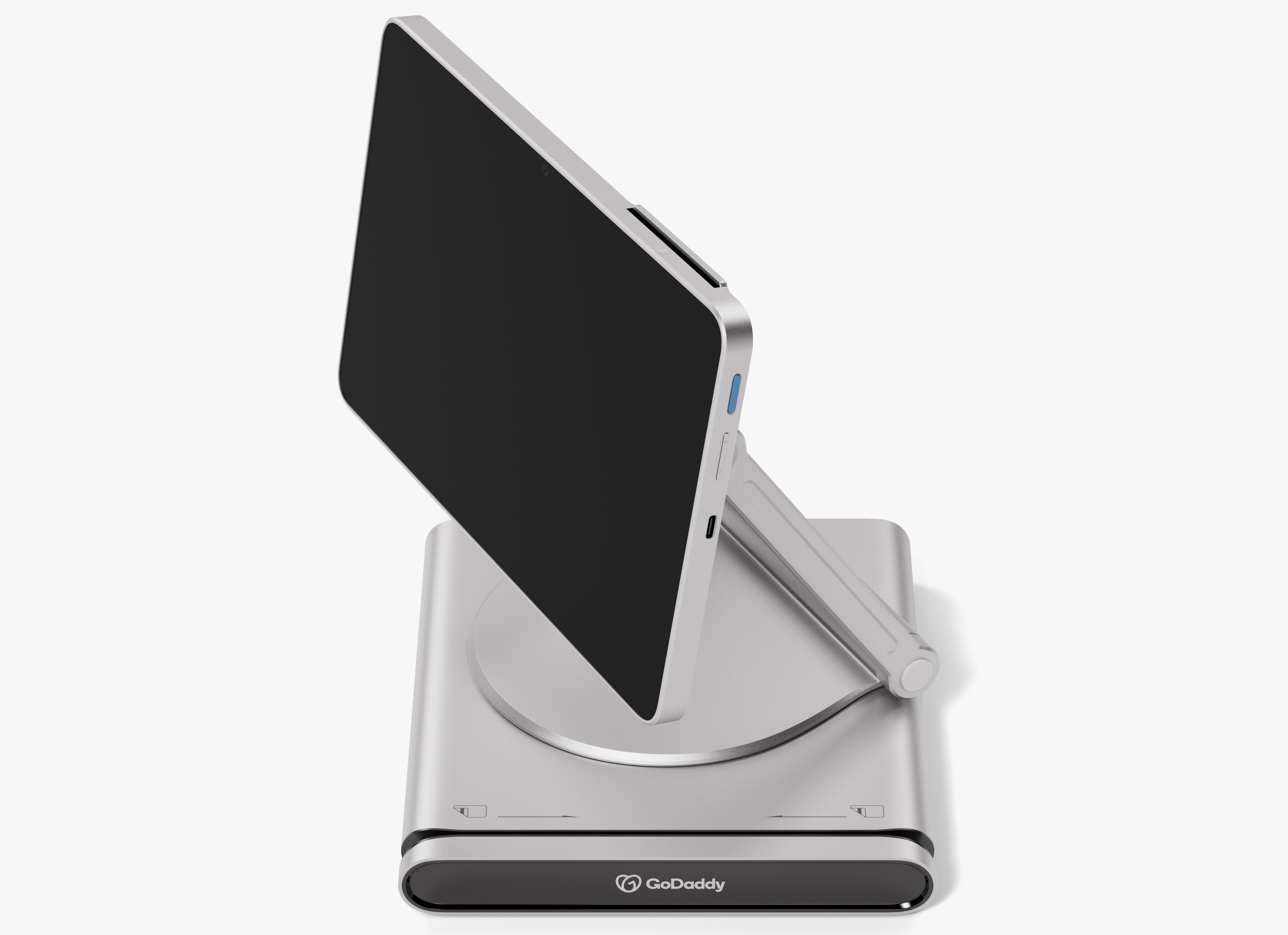

4. Once the display is connected, swivel it by grasping a support arm and turning the swivel to the left or right. You can swivel the screen to face the customer or merchant and adjust the angle of the display to a position that suits you.


Step 4: Position the Smart Terminal Pro in your workspace

1. When you’re ready to place the Smart Terminal Pro where you want it, clean and dry the surface where the device will sit.
2. Turn the stand over and remove the two adhesive strips on the bottom.
3. Turn the stand right-side up and position it on your counter or in your workspace.

4. Gently press the stand onto the countertop. The adhesive helps keep the Smart Terminal Pro from moving or shifting during use.
